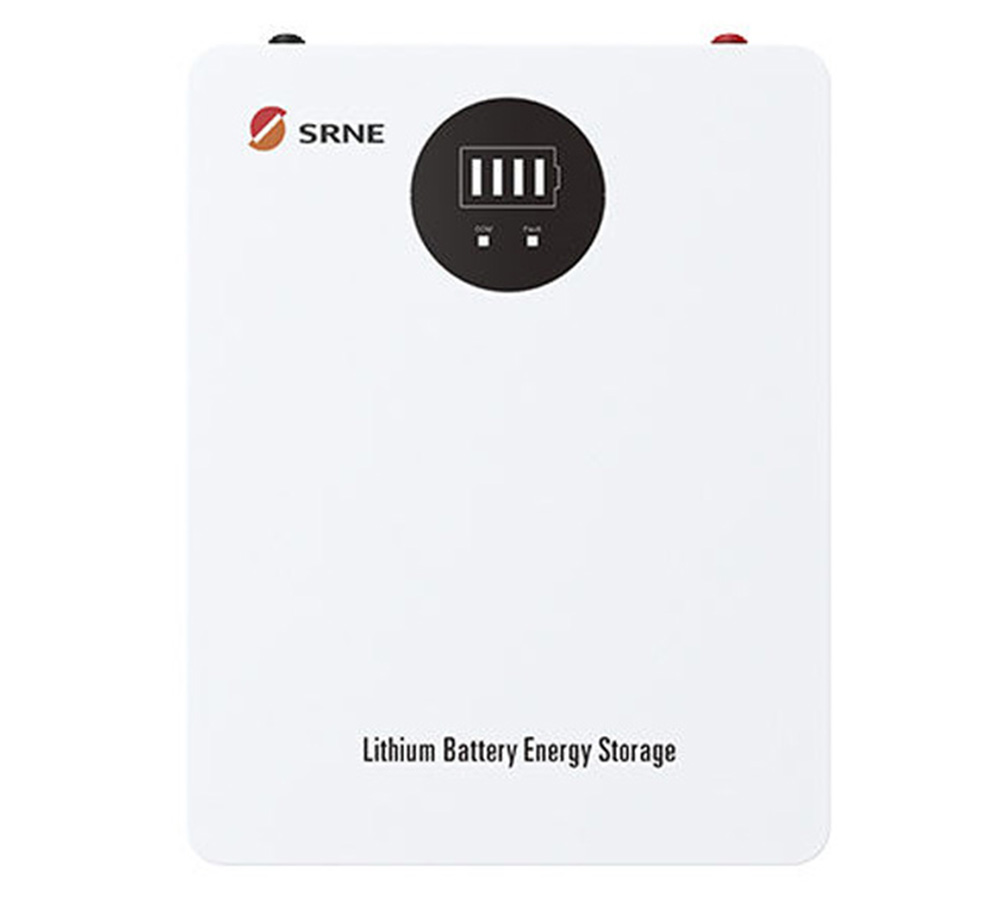

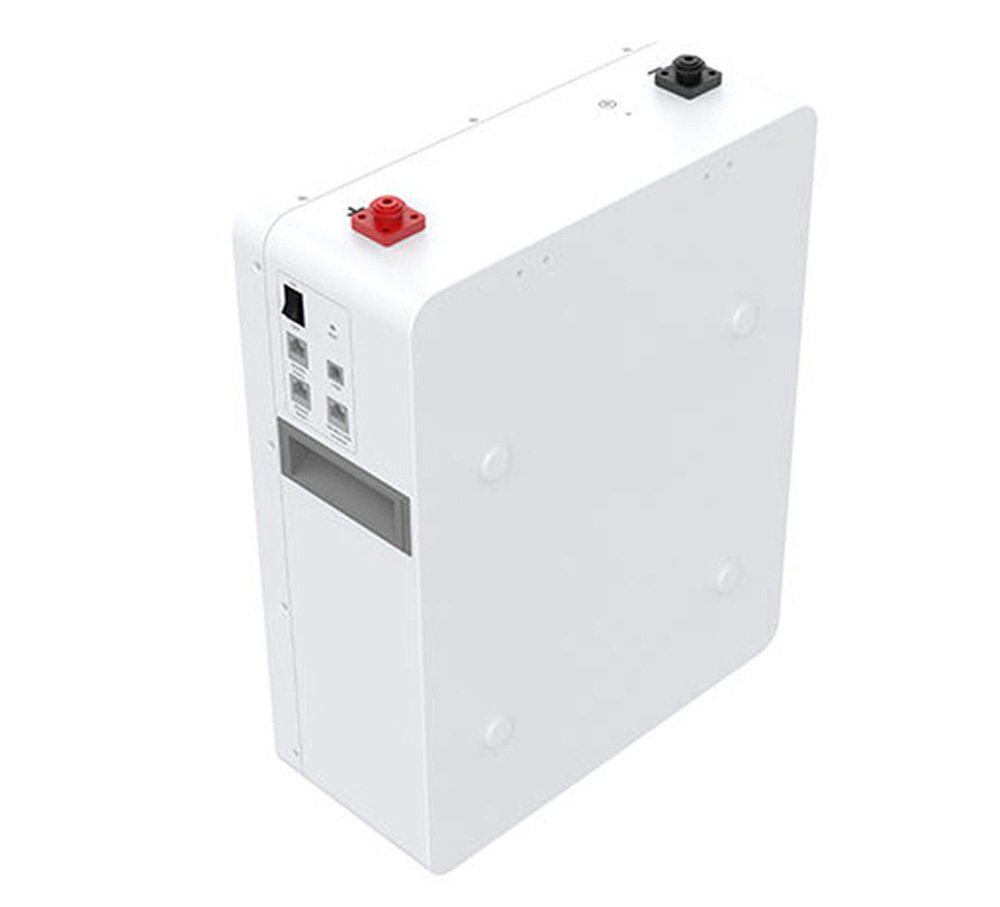

Model: SR EOS08B 24
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage: 25.6 V (24 V system class)
Capacity: 280 Ah
Battery Energy: 7.16 kWh (usable energy storage)
Standard Charging Current: 100 A
Max. Charging Current: 120 A
Standard Discharging Current: 100 A
Max. Discharging Current: 120 A
Peak Charging/Discharging Current (3 s): 150 A
Max. Charging Voltage: 28.8 V
Over Discharge Voltage (cut off): 22.4 V
Cycle Lifespan: ~6000 cycles @ 80% Depth of Discharge (DOD)
Weight: ~69 kg
Typical Dimensions: ~549 × 380 × 253 mm
Parallel Expansion: Up to 4 units in parallel
